Combine Grain Tank Flip-Top Cover Kits

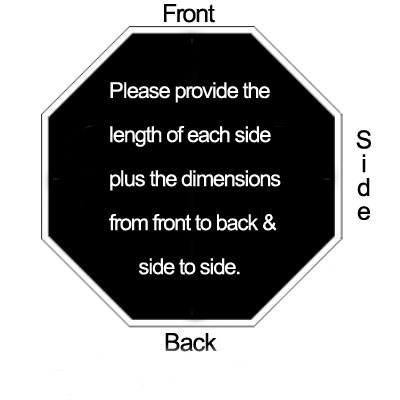

Measuring Combine Covers

Download the combine cover installation instructions here (PDF).

Combine Grain Tank Flip-Top Cover Kits

• Pivoting bow pockets also feature adjustable locking screws. This allows you to raise the height of the bows. The web strap purlins help hold the position and allow all the bows to be raised or alligned in succession.
• Mounting brackets are attached to the two angled side panels. The pivoting bow pockets then attach to the mounting brackets with a single pin. Removable bows slide into pockets. This allows you to remove the tarp and bows quickly and easily by just removing two pins.
• Cover is made from 18oz. vinyl coated nylon.
• Extra strong 3/8" shock cord sewn in the hem to seal cover tightly to sides.
• Corners are reinforced for added strength.
• All seams are heat sealed or electronically welded.
• Purlin straps are 1" 1000 lb. webbing.
• Cover has a 12" drop for a water tight seal over extension sides.
• Steel pins for quick release pivoting bow plates.
• Web ties hold the bows in position for covering.
• Brass rust resistant #2 grommets with 3/8" ID.
• Fabric cover is waterproof, impervious to mildew and rot.
• Hems and reinforced corners are sewn with three ply polyester thread. It is stronger than cotton thread and resistant to mildew & rot.
• Bows are galvanized steel. They won't rust.
• In addition to being easily removed, the tarp and bows can be raised to form a weather proof domed top that protects the grain from rain or can be lowered quickly for road transport. The tarp and bows will collapse within the grain extension sides. It is recommended the tarp and bows be lowered when transporting the combine. For removal, take out pins and the tarp and bows can be easily lifted off.
